Automatic Cone Packing System

APAC - Automatic Cone Packing System

Principle of Conditioning

Automatic Cone Packing System has modules for automatic wrapping of conical or cylindrical yarn packages in polythene film and packing them in HDPE bags or carton boxes.


  • Completely automatic system.
  • Reduces the material handling and work force.
  • Linked to Auto Storage. (through Yarn Ware House Management)
Automatic Cone Packing System

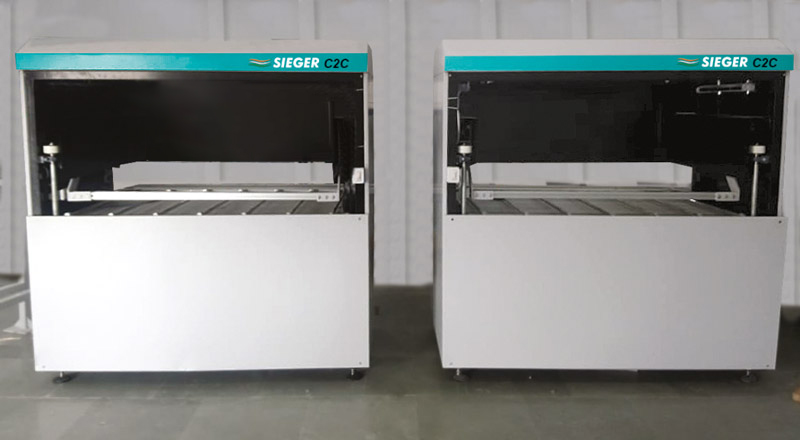

MANUAL WEIGHT BALANCING

Function

With this Manual Weight Balancing system, the workers can select cones of right weight and feed to packing.

Advantages

  • Manual selection of right cones.
  • Shade variation can be identified with the UV chamber.
  • Uninterrupted supply of cones for wrapping

Specification

Cone Dia 150 to 270mm and length - 170mm
Connected Load 0.75 kw

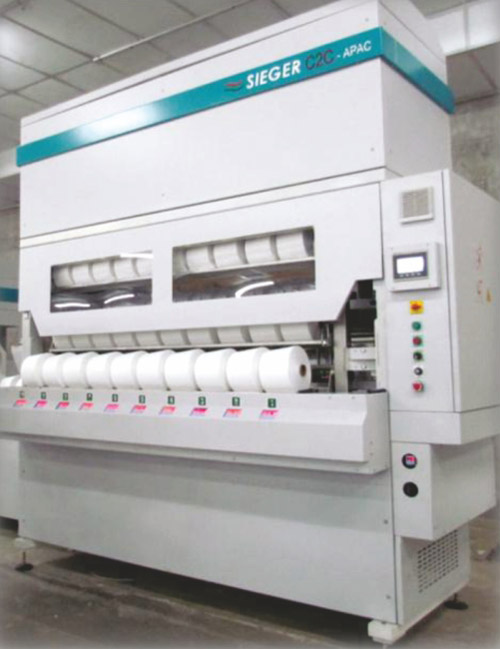

Buffer Storage (Optional)

Function

This system with a capacity 240 cones (20 trays and 12 cones in each row) stored manually are moved to wrapping module.

The programmable weight indication system ensures that of weight of cones remain within tolerance

Advantages

  • Less storage area.(due to vertical storage)
  • Uninterrupted supply of cones for wrapping.

Specification

Capacity 240 Cones (20 trays each tray 12 cones)
Cone Dia 150 to 270mm and length - 170mm
Connected Load 2.0 kw
Air Consumption 1.2 cfm

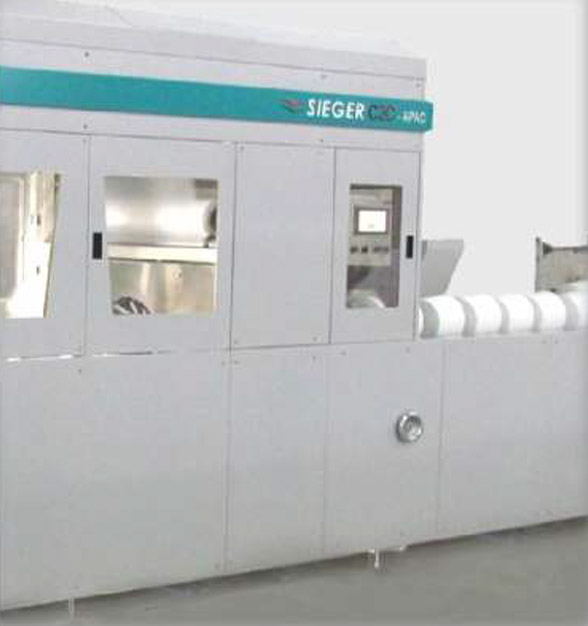

Wrapping

Function

Automatic wrapping of conical or cylindrical yarn packages with outer diameter in the range of 150 to 270mm, in polythene film. The cones are packed smoothly to be firm till they reach end user for unwrapping for use.

Advantages

  • Drastic reduction in manpower.
  • Thine film for cone wrapping.
  • Very leass air consumption.
  • Automatic feeding of wrapping polythene sheet.

Specification

Capacity 700 Cones/hr
Cone Dia. 150 to 270mm
Connected Load 2.6 kw
Air Consumption 2.19 cfm

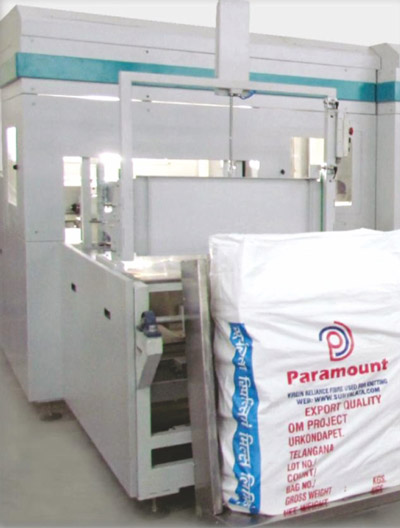

Bagging

Function

Wrapped cones are placed as per preset matrix with cone base & nose placed alternatively.

Matrix capacity - 4 rows max / 5 columns max

The cones are moved into pre-positioned bags and filled bags are automatically tilted to be easy for workers to stitch & unload.

Advantages

  • Cone matrix formation to avoid yarn damages.
  • Reduction in manual handling of materials.
  • Effortless handling of filled bags.

Specification

Packing Material HDPE Bag / Polybag / Sack
Size of Polybag 32" to 48"
Connected Load 1.25 kw
Air Consumption 2.36 cfm
bagging

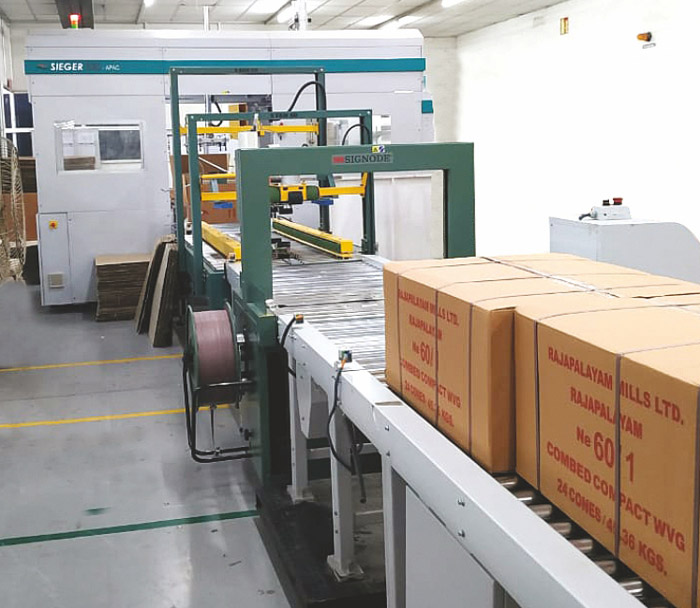

Boxing

Function

Cones are placed into manually opened boxes as per preset matrix with a partition s sheets. The filled boxes are automatically transported for further process like sealin, strapping, weighting and labeling.

Advantages

  • Automatic & safe feeding of carton boxes (opened manually)
  • Continuous feeding for sealing, strapping, weighing & labeling of carton boxes.

Specification

Capacity 700 Cones/hr
Cone Dia. 150 to 270mm
Connected Load 2.3 kw
Air Consumption 3.9 cfm

SIEGER APAC
Automatic Cone Packing System
