Sieger Sieger
Automatic Storage Solutions

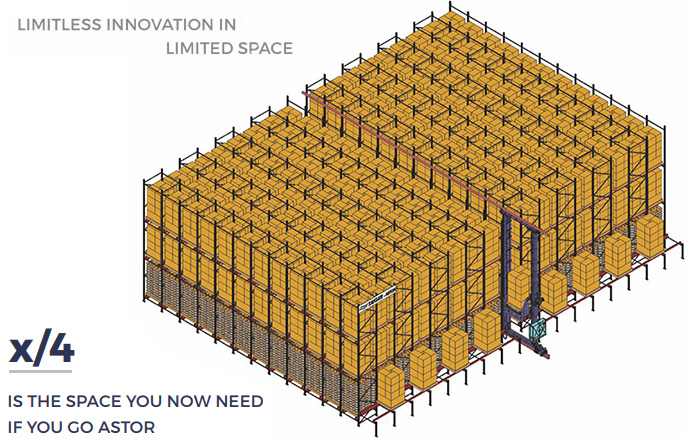

ASTOR - Automatic Storage Solutions

Sieger ASTOR - Storage System

Space is money, Space is time, when space is less, more efficient is the manpower. Our storage solutions including automatic storage & retrieving system is programmed to sort, store, locate, transport and pack good in the manner you want them.

Sieger ASTOR - Merits

  • Better control of inventory.
  • More than 65% savings in storage area.
  • Significant time reduction for storing and retrieval.
  • Easy identification of old stock.
  • Manpower savings in handling heavy packages.

AS/ RS - Automatic storage and Retrieval system

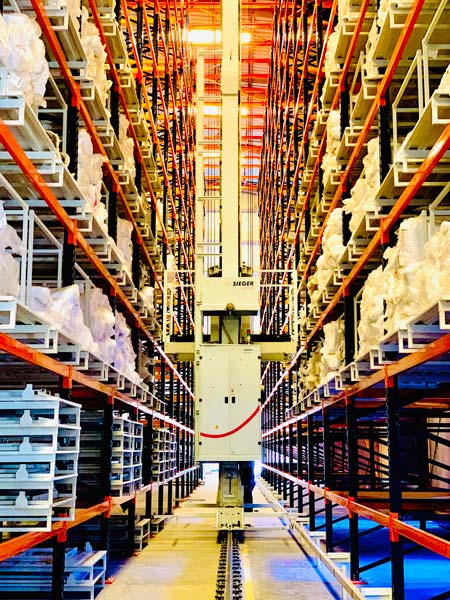

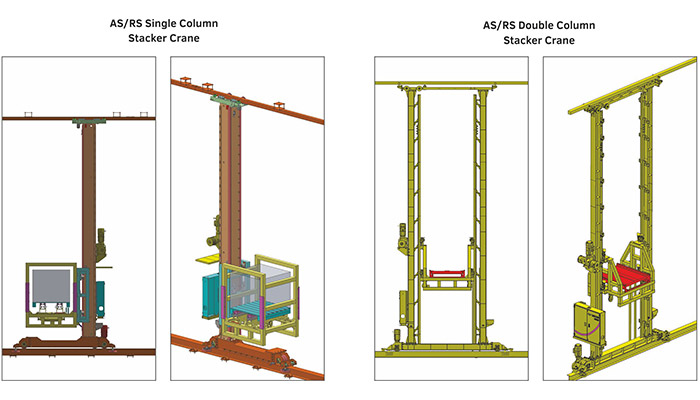

AS / RS Stacker Crane

  • Single Column (for lighter loads).
  • Double Column (above 500kgs).

Technical Specification & Features

  • Max Capacity 2000kgs.
  • Max Height 25m.
  • Max Running Speed 1.5m/s.
  • Max Speed and Lifting 0.5m/s.
  • WIFI Controls.
  • Suitable for pallet sizes 1200 x 1200cm.
  • Anti Drop Mechanism.
  • Laser Guided.

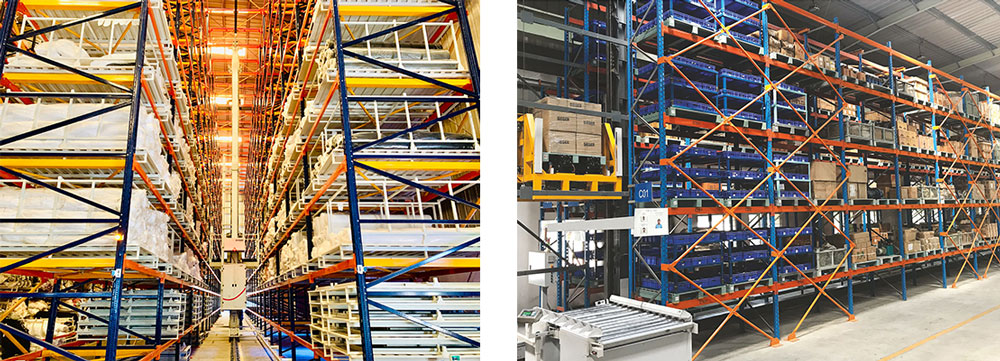

Automatic storage and Retrieval system

SIEGER’s ASRS system has already been certified and proved to be successful within
the textile material handling as well as in the industrial storage sector.

ASRS Projects for Textile Fabric Handling and General Engineering Industries.

Catered Industries

Pharmaceutical & Healthcare

Textile & Fabric Handling

Food & Cold Storage

Tyres

Paints & Chemicals

FMCG

Ceramics & Tiles

General Engineering

Breweries & Distilleries

Spices

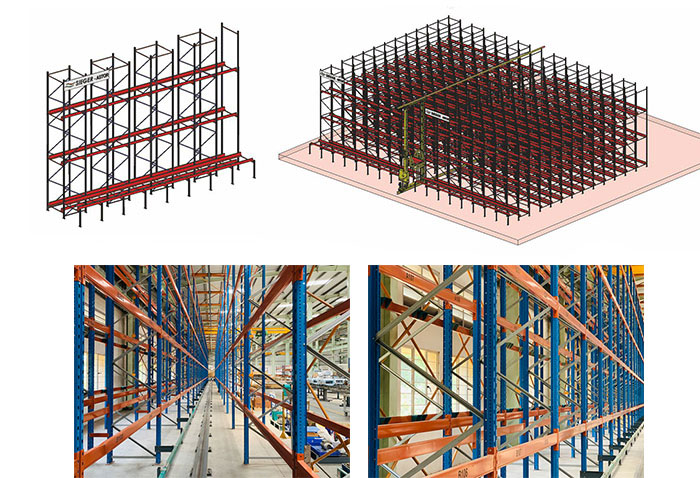

Racking Systems

Types of Racking System

  • Radio Shuttle Pallet Racking.
  • Telescopic fork Pallet Racking.

Features

  • As per EN Standards.
  • Customized Design.

Protection Devices

  • Column Guard.
  • Pallet Support Bar.
  • Skid Channel.
  • Frame Protectors.
  • Rack End Barriers.
  • Rear End Support.
  • Frame Protections.
  • Barriers.
  • Anti Collapse Mesh.

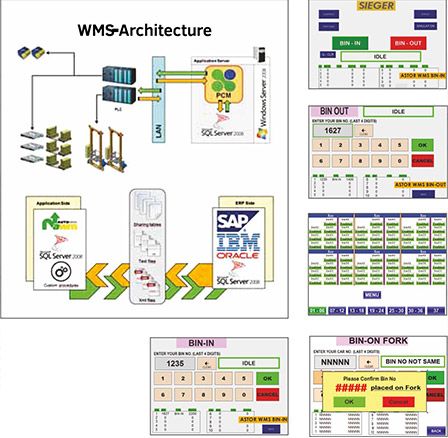

WMS - Warehouse Management System

Features

  • Touch Screen Display.
  • IOT Technology.
  • Master Control Panel with PLC.
  • Link to ERP.

Reports

  • Total stock available.
  • Variety wise stock.
  • What is where?
  • What is what?
  • Particular varity locations.
  • Particular varity retrieval FIFO or pn deman date wise.
  • Day wise in out report.
  • Monthly report.
  • Total operation time of ASRS.

Sieger Wifi Radio Shuttle

Wifi Radio Shuttle

Sieger Wifi Radio Shuttle is suitable for deeper access & for dense storage of pallets.

Features

  • Laser Guided and WIFI Controls.
  • Automatic functions operated from WIFI.
  • Power supply - Lithium battery / Super cap.
  • Capacity - 1500kgs.
Sl.No Description Specifications
1 Pallet length 800mm 1000mm 1200mm
2 Pallet width 1200mm 1200mm 1200mm
3 Shuttle length A 1086 1286 1486
4 Shuttle width 980 980 980
5 Shuttle height 195 195 195
6 Pallet Lifting height 45mm 45mm 45mm
7 Lifting Load capacity 1500 kg 1500 kg 1500 kg
8 Travelling Speed with load 40 m/min 40 m/min 40 m/min
9 Travelling Speed without load 58 m/min 58 m/min 58 m/min
10 Lifting and Down time 2.5 sec 2.5 sec 2.5 sec
11 Ambient temperature, Deg.C +45 to -30 +45 to -30 +45 to -30
12 Battery Voltage 48 v 48 v 48 v
13 Travelling Motor Power 800 w 800 w 800 w
14 Lifting Motor Power 800 w 800 w 800 w
15 Battery Type Lithium ion / Supercap
16 Connectivity Wi-Fi
