Sheet Storage System
SIEGER SHEETSMART
SIEGER - Sheet Storage System
Space is money, Space is time, when space is less, more efficient is the manpower. Our SHEETSMART sheet storage solutions including automatic storage & retrieving system is programmed to weight, store, retrieve, feeding to machines, unloading sheet from laser and sort parts in the manner you want them.
- Automated sorting and retrival based on ERP instructions.
- Vertical storage of pallets.
- Auto tagging of packages.
- Bar coding.
SHEETSMART - Merits
- Assured Improvement in machine utilization.
- Eliminate manpower for sheet feeding.
- Absolute control of inventory.
- Easy segregation of cut parts.
- Identification and coding of cut parts.
- Can be linked to subsequent process through ERP.
- Good control of entire sheet metal operations for user.

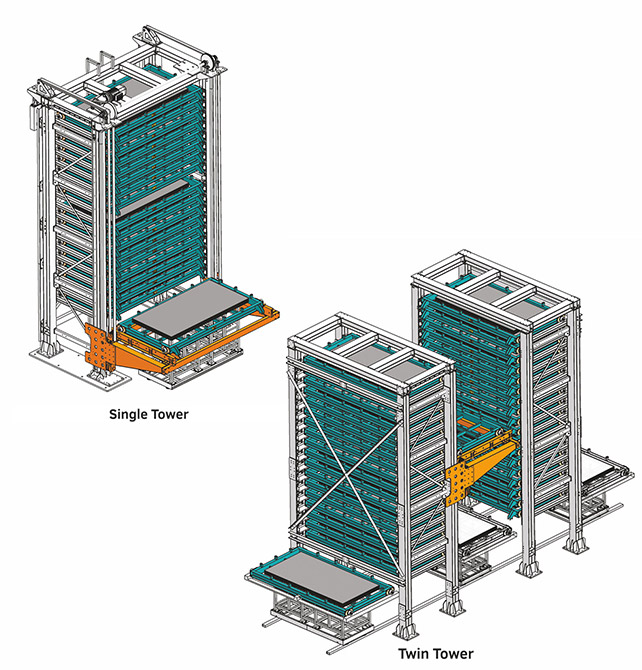

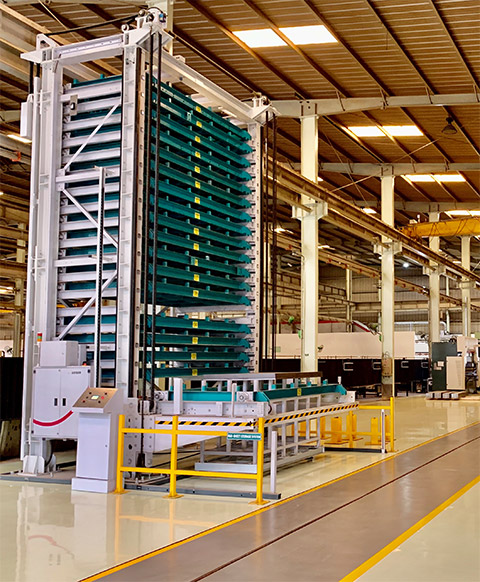

Sheet Storage Towers
Features & Technical Data
- Easy access of loading & unloading.
- Optimization of stock.
- Smart Utilization of space.
- Automatic operation.
| Sl. No. | Single / Twin Tower | Unit | Pallet formate (Standard) | Pallet formate (Heavy) |
|---|---|---|---|---|
| 1 | Storage Dimensions (W x L) | mm | 1250 x 2500 | 1500 x 3000 |
| 2 | Material Loading Height | mm | 125 | 125 |
| 3 | Load capacity per pallet | kg | 3000 | 4500 |
| 4 | Number of pallets | No's | 18 x (1*) / (2**) | 18 x (1*) / (2**) |
| 5 | Max. travel speed | m/min | 8 | 8 |
| 6 | System Height | mm | 7000 | 7000 |

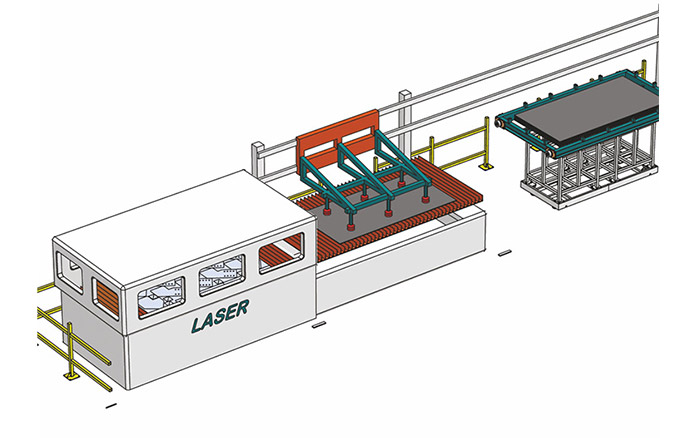

Sheet Feeder
Features & Technical Data
- Feed the sheets from pallet storage to Laser machines.
- Sheet feeding through Vacuum suction cups.
- Feeding to Single / Multiple machines.
- Increased machine productivity.
| Sl.No | Sheet Feeder | Unit | Standard | Heavy |
|---|---|---|---|---|
| 1 | Maximum Sheet Size (W x L) | mm | 1250x2500 | 1500x3000 |
| 2 | Maximum Sheet Thickness | mm | 25 | 25 |
| 3 | Maximum Sheet Weight | kg | 600 | 900 |

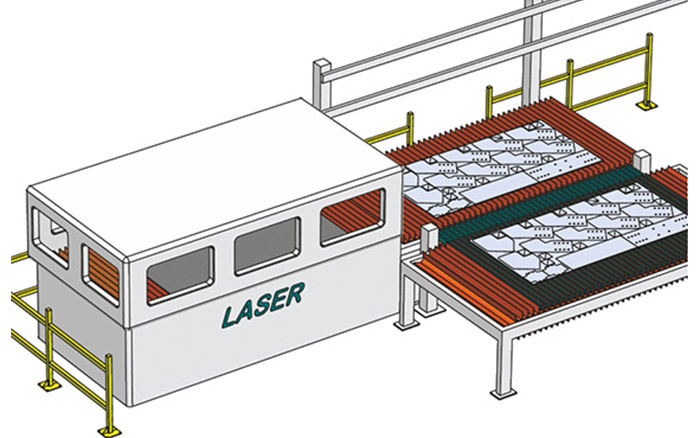

Unloader
Features
- Spike/ Slat Conveyor System.
- Comb unloader for cut parts.

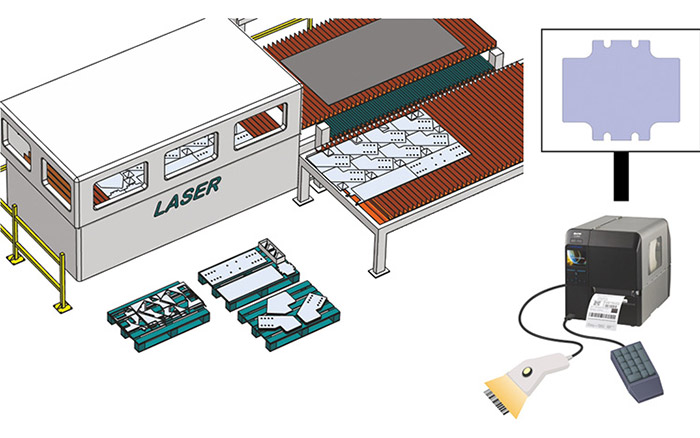

Sorter / Bar Coding
Features
- Semi-Automatic System.
- Software Provision for sheet sorter.

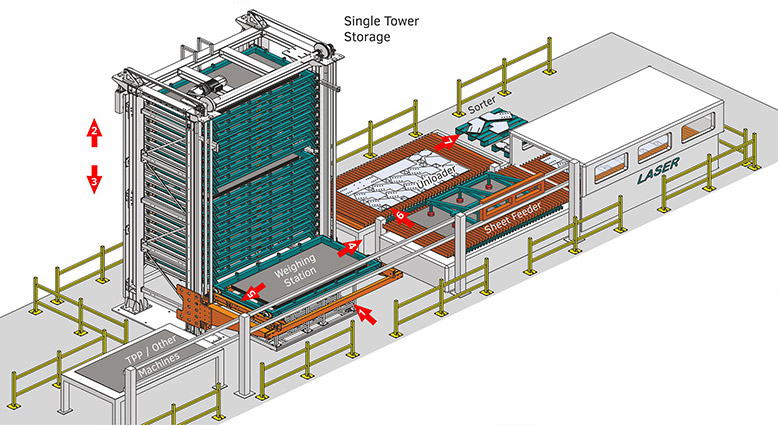

Sieger Sheet Storage System
Legend
- 1 - Sheet Loading to Weighing Station.
- 2 - Automatic Sheet Storing.
- 3 - Automatic Sheet Retrieving.
- 4 - Automatic Sheet Feeding to Laser.
- 5 - Automatic Sheet Feeding to TPP / Other machines.
- 6 - Automatic Sheet Unloading from Laser.
- 7 - Semi Automatic - Sorter.
